Starting with the development of Japan's first broaching machine, Nachi-Fujikoshi has been researching and developing machine tools that are indispensable for manufacturing that continues to progress. Taking advantage of the characteristics of a comprehensive machine manufacturer that has a wide range of businesses such as machine tools, tools. and robots, we have sent out products to the automotive and industrial machinery tields. and have earned a high reputation and trust
Turning. drilIing. and gear shaping combined in one center

Skiving machining center for Gears

  • Skiving machining center lor gears Is a gear skiving machine General purpose-Compact with additional function of lathing and drilling. with additional function of lathing and drilling.
  • made using Just one chuck mounting lor consistent production — Best for gear machining for automotive parts accuracy and greatly reduced Idle time. Compact equipment with flexibility to cope with the various kinds

Skiving machining center for Gears

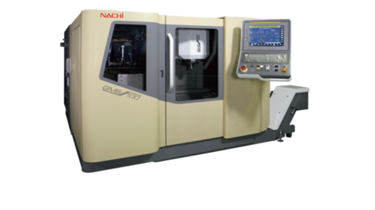

Skiving machining center for Gears GMSIOO

Integrated process machine for small parts of electronics, EV, reduction gear, air craft, and medical instrument.

  • Gear machining processes (skiving, hobbing, lathe, drilling) are integrated into one machine.

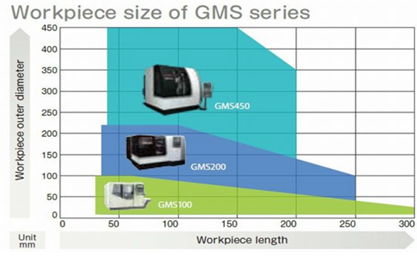

  • Optimal capability for small workpiece. (outer diameter: up to 100mm, full length: up to 300mm)
  • Enhanced lathe function with optimal axis composition, special cutting tool, and program.
  • Installation floor space comparison: 54%-reduced with machining line of lathe, drilling and gear cutting.
  •  High accurate machining for free curved surface is possible With high rigidity and by multi-axis synchronizing control.

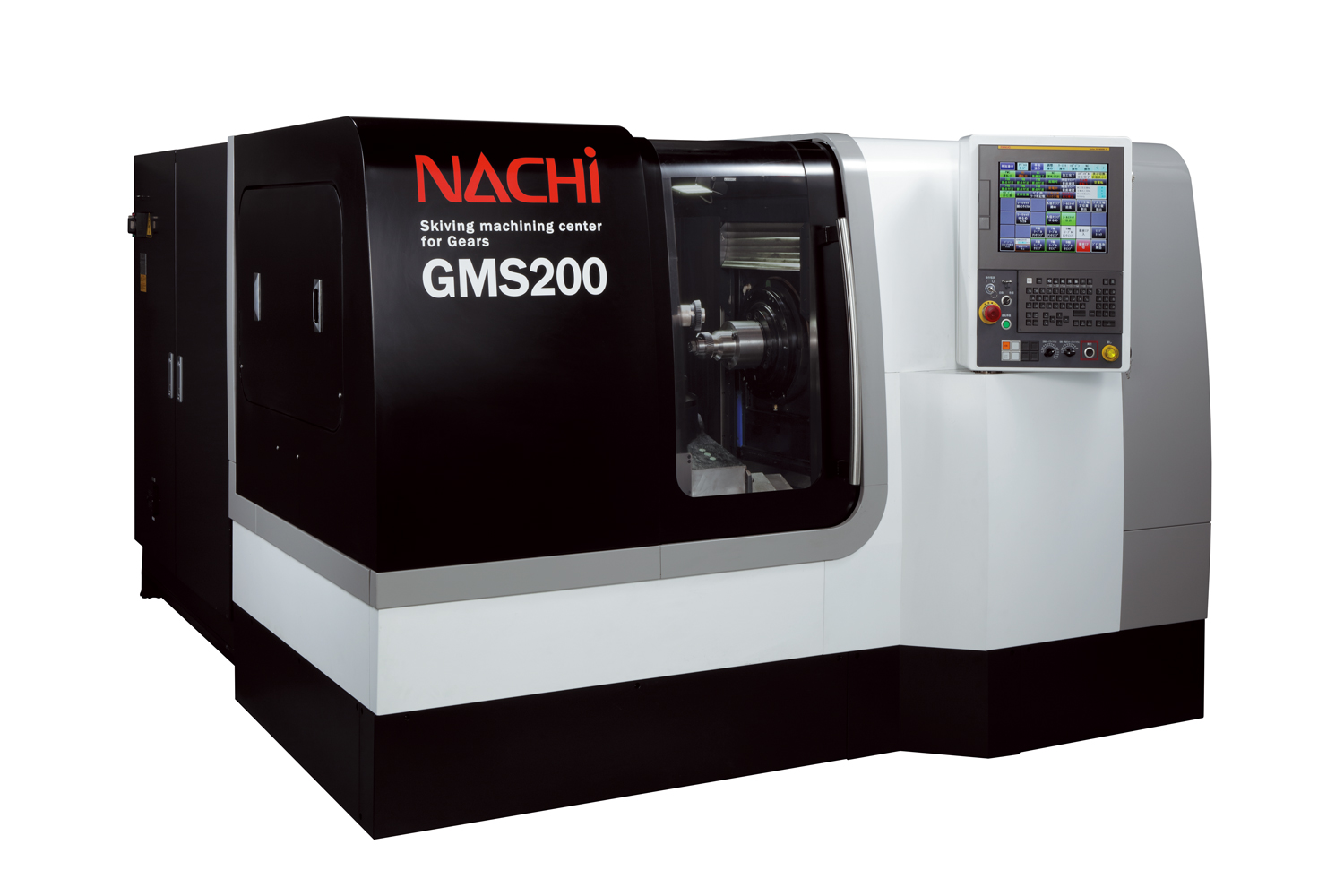

Skiving machining center for Gears GMS200

General purpose-Compact

Multi-function machine to include skiving function

  • Best for gear machining for automotive parts
  • Compact equipment with flexibility to cope with the various kinds of small quantity production and multiple processes
  • Hard-skiving achieves high-precision machining Of hardened gears
  • Interactive operation screen provides excellent man-machine i nterface

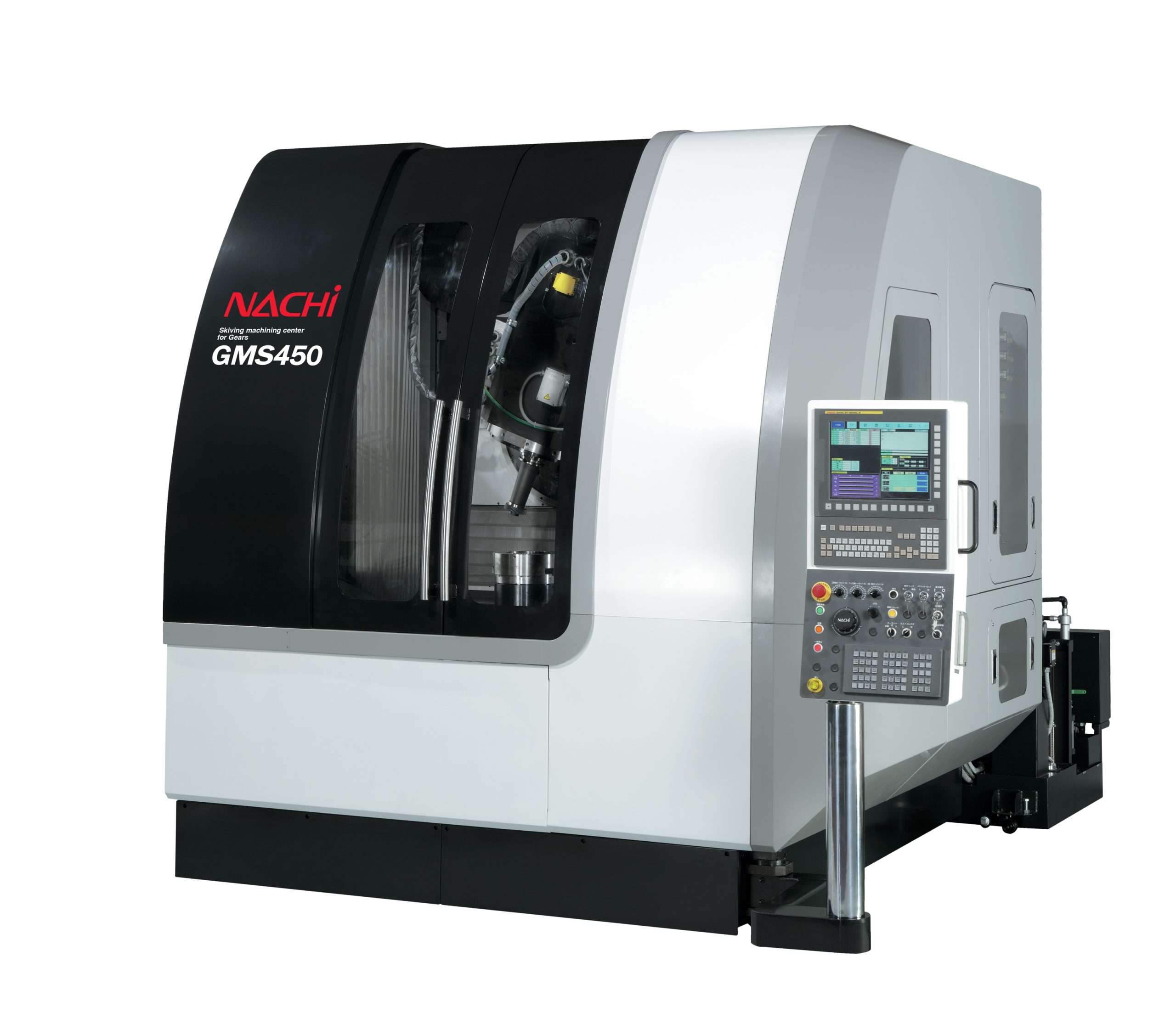

Skiving machining center for Gears GMS450

Super accurate high performance skiving at peak of ideals

  • High efficiency gear skiving reduces machining time to as much as 1/5 (compared to gear shaping)
  • Proprietary technologies used to add lathe and drill to skiving machine for a multi-functional gear shaper
  • Both mass production & multi-type-small-lot production
  • Compact yet can be machining up to 450mm diameter part
  • Hard-skiving achieves high-precision machining of hardened gears
  • Interactive operation screen provides excellent man-machine interface

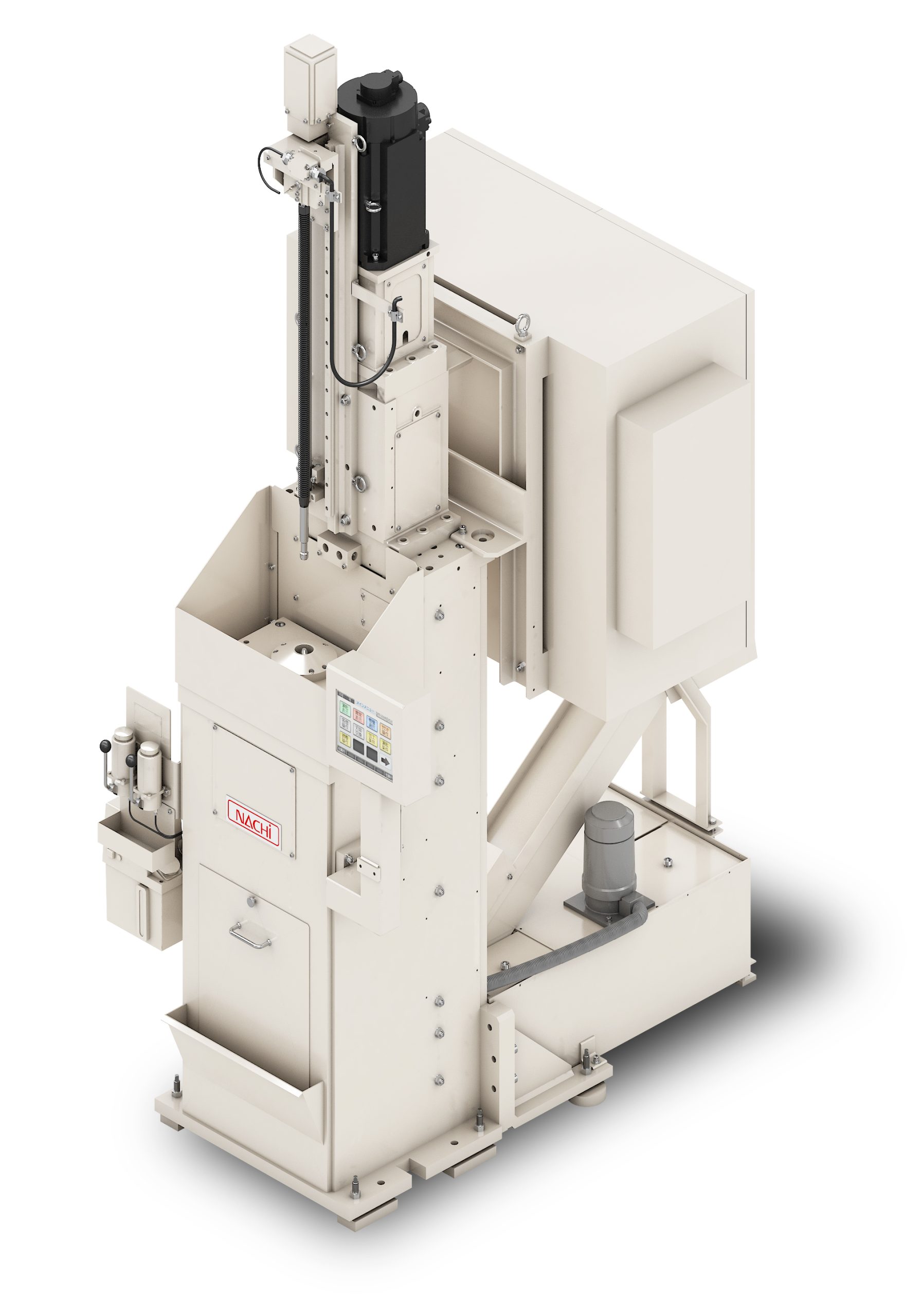

Small size mechanical broaching machines

NEV-MA series

The NBV-MA-series is a mechanical-vertical broaching machine which has been developed based on the hydraulic type NBV-series with high reliability. The running cost has been reduced without hydraulic devices, and the environmental performance has been improved. The efficient productivity has been realized with high-versatile pulling force.

PRECISION ROLL FORMING MACHINE PFM-X series

Friendly to environment

• Serni-dry roll forming is achieved by NACHI semi-dry forming rack and highly rigid main body

Energy saving

  • power consumption is reduced by electric power drive and semi-dry rolling. Hiqh precision roll forming through NC synchronization
  • TWO Server motors move rack left and fight with high precision NC synchronization (Direct ball screw coupling in a backlash-less construction)
  • Position adjustment conventionally done with CIM is numerically controlled Change—out procedure is easy
  • Rack can be moved to position for easy change, Out (Stroke extends to 200 mm during rack change-out)
  • OPD dimensions can be adjusted without loosening rack X series

Hiqh precision roll forming through NC synchronization

  • TWO Server motors move rack left and fight with high precision NC synchronization (Direct ball screw coupling in a backlash-less construction)
  • Position adjustment conventionally done with CIM is numerically controlled Change—out procedure is easy

Change—out procedure is easy

  • Rack can be moved to position for easy change, Out (Stroke extends to 200 mm during rack change-out)
  • OPD dimensions can be adjusted without loosening rack

New

GSGT260

Optimal machine for high-precision and high-efficient mass production

High-performance gear grinding machine GSGT260

  • The new compact gear grinding machine with high precision and high efficiency finally has been realized.
  • Variable applications from mass-production Of automobile reduction gears to gears for industrial machines
  • Machining system combined together with NACHI's gear design technologies and grinding technologies

Variable machining applications

  • Optimal for high-speed and high-precision mass production of reduction gears for EV and HV
  • Applicable for high precision grinding of large gears for industrial machines
  • Applicable for gears with Max. module: 4, and with outer diameter:Ø20 - 260
